| Specification |
|---|
| Manufacturer | Penn Engineering |
| Manufacturer's Part Number | TPS-250-16 |
| Description | TPS-250-16 Unthreaded Pin, Flush Head |
| Product Type | TPS |
| Thread Size | Unthreaded |
| Length | 01.00 in |
| Material Specification | 300 Series Stainless Steel |
| Finish Specification | Passivated and/or tested per ASTM A380 |
| Sheet Thickness | 0.040 in |
| For Use In Sheet Hardness | HRB 70/HB 125 or Less |
| Fastener Material | 300 Series Stainless Steel |

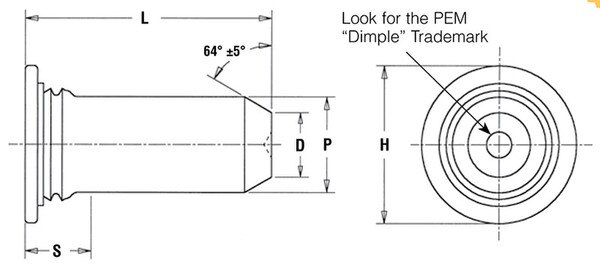

| D | 0.177 in ± 0.006 |
| H | 0.335 in ±0.015 |
| P | 0.250 in ± .002 |
| S | 0.09 in Max. |
| Hole Size in Sheet | 0.272 in + .003 - .000 |
| Min. Dist. Hole C/L to Edge | 0.310 in |
