| Specification |
|---|
| Manufacturer | Penn Engineering |
| Manufacturer's Part Number | S-M4-2ZI |

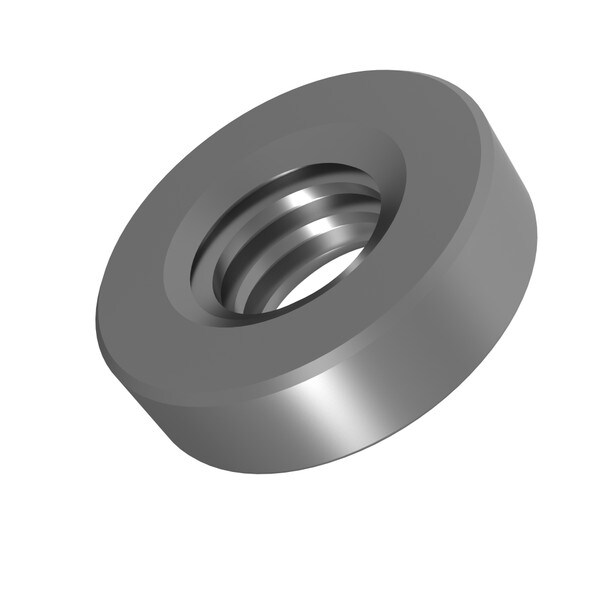

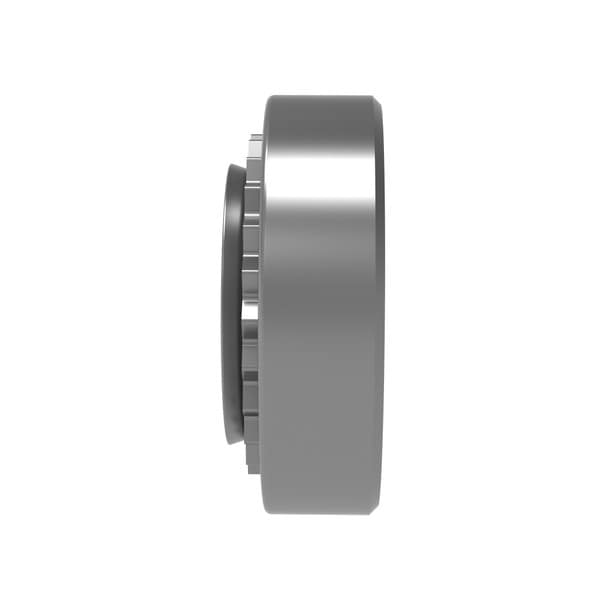

| Description | S-M4-2ZI Standard Profile Nut |
| Product Type | S |
| Thread Size | M4X0.7 |
| Material Specification | Heat-Treated Carbon Steel |
| Finish Specification | Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless |
| Shank Code | 2 |
| A Shank Max. | 1.38 mm |
| Min. Sheet Thickness | 1.40 mm |
| For Use In Sheet Hardness | HRB 80/HB 150 or less |
| Thread Specification | Internal, ASME B1.13M, 6H |
| Material Finish | Zinc Plated, 5µm, Colorless |

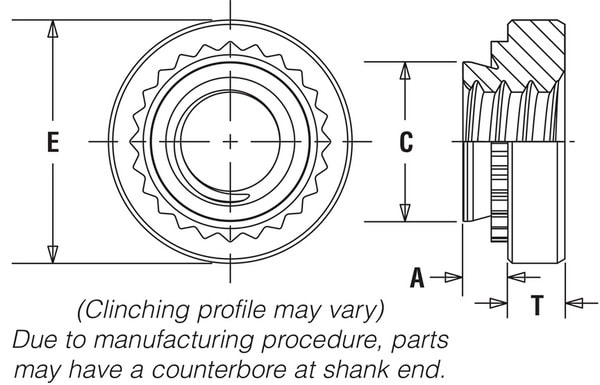

| C | 5.38 mm Max. |
| E | 7.87 mm ± 0.25 |
| T | 2 mm ± 0.25 |
| Hole Size in Sheet | 5.41 mm +0.08 |
