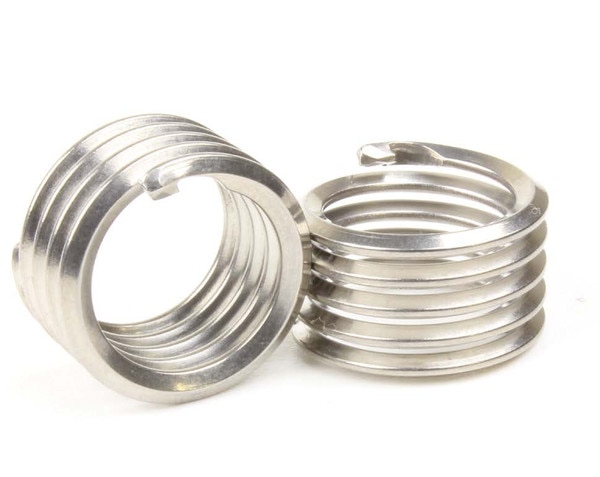

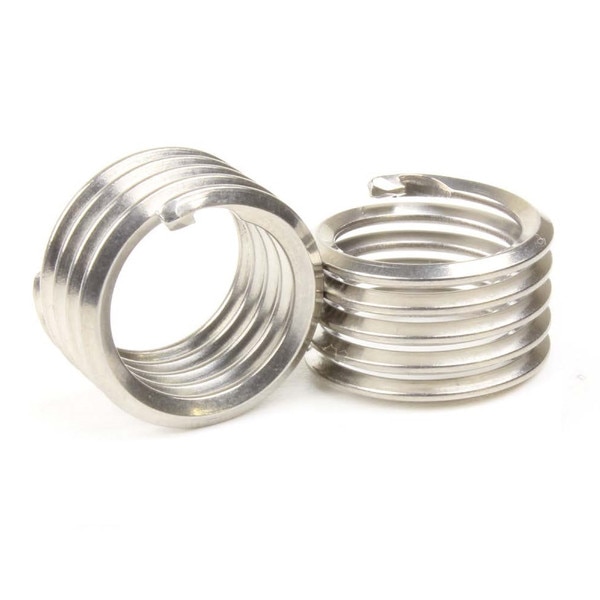

Kato 2TNF-8C-0500Y Tangless Non-Locking Insert

SKU: 73572 | MPN: 2TNF-8C-0500Y
/ Eaches
Subtotal:$0.00
WARNING: Cancer and Reproductive Harm --
P65Warnings.ca.gov
Discount by: unit
QuantityPrice
*Additional inventory may be available. Please contact your sales location.

Details

Specifications
Thread Size1/2-20
CoatingCadmium
Wire Insert SeriesNon-Locking
Wire Insert TypeTangless
MaterialStainless Steel
Material304 Stainless Steel
Length Nominal Dia.1 Dia.
Material SpecificationAS7245

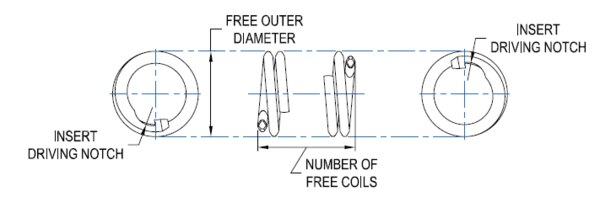

Number of Free Coils7-7/8
Free Coil Diameter Min.0.592
Free Coil Diameter Max.0.617
Finish SpecificationAMS-QQ-P-416
Finish AppearanceGold to Yellow Chromate
