  • IUTB-M4 STANDARD INSERT

Images are for reference only

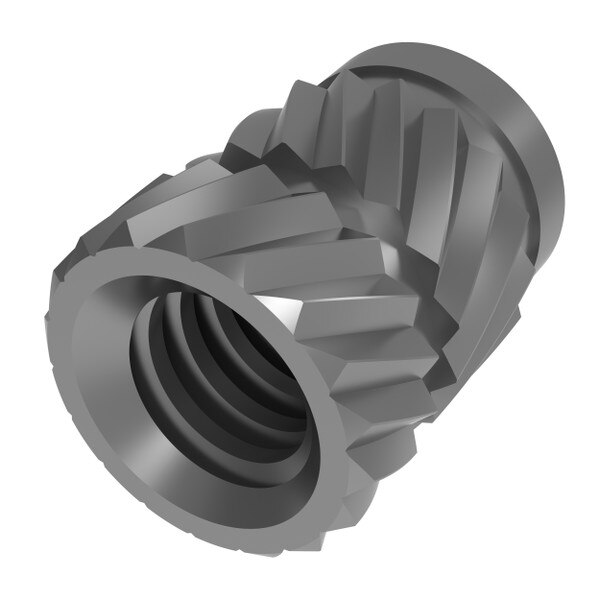

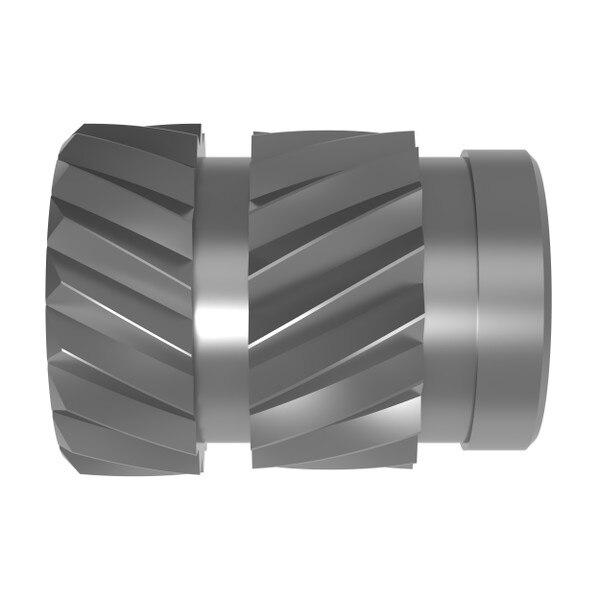

IUTB-M4 STANDARD INSERT

SKU: 06505 | MPN: IUTB-M4
/ Eaches
Subtotal:$0.22
Quantity Available *
QuantityLocation
71Anaheim
WARNING: Cancer and Reproductive Harm --
P65Warnings.ca.gov
Discount by: unit
QuantityPrice
1 - 499
500 - 999
1,000 - 4,999
5,000 - 9,999
10,000 - 24,999
25,000 - 49,999
50,000 - 99,999
100,000 - 249,999
250,000 +
*Additional inventory may be available. Please contact your sales location.

Details

Specifications
ManufacturerPEM SI
Manufacturer's Part No.IUTB-M4
MaterialBrass
Thread SizeM4 x 0.7
Diameter6.17 mm
L - Length8.15 mm
Length Tolerance± 0.13 mm
Minimum Hole Depth8.91 mm
Hole Taper Anglen/a
Hole Diameter5.67 mm
Hole Diameter [Tolerance]+0.08 mm
Pilot Diameter5.51 mm
Pilot Diameter [Tolerance]± 0.13
Hole Taper Diametern/a
Hole Taper Diameter [Tolerance]n/a
Hole Taper Depthn/a
Installation MethodUltrasonic/Heat Staking
