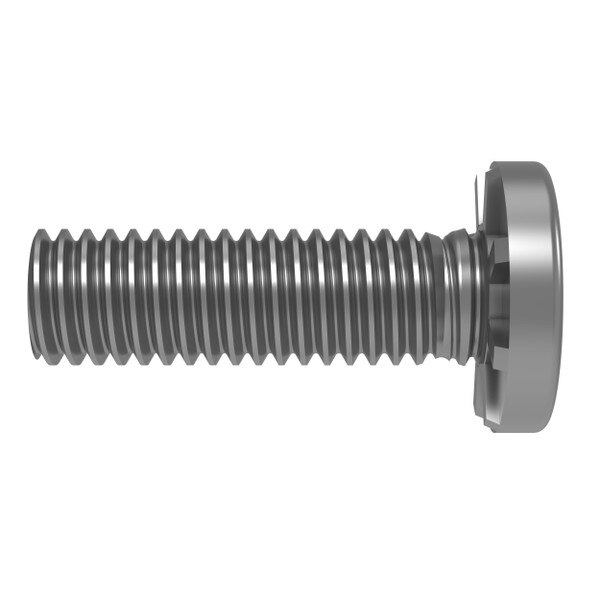

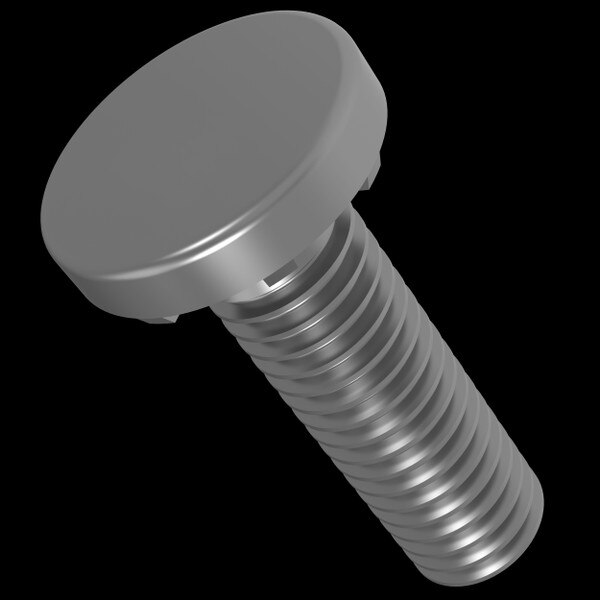

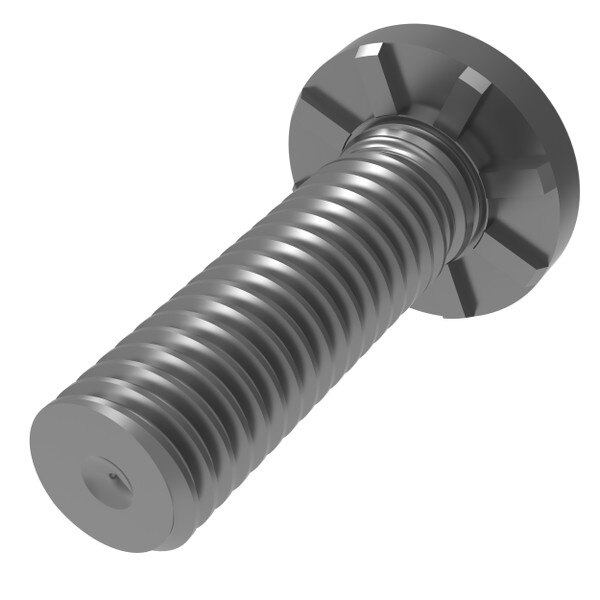

| Specification |
|---|
| Manufacturer | Penn Engineering |
| Manufacturer's Part Number | HF109-M6-15ZI |
| Description | HF109-M6-15ZI High Tensile Strength Studs, Non Flush |
| Product Type | HF109 |
| Thread Size | M6 |
| Length | 15 mm |
| Material Specification | Heat-Treated Medium Carbon Alloy Steel |
| Finish Specification | Zinc plated per ASTM B633, SC1 (5µm), Type III, Colorless |
| Sheet Thickness | 1 mm |
| For Use In Sheet Hardness | HRB 89/HB 180 or Less |
| Thread Specification | External, ASME B1.13M, 6g |
| Fastener Material | Heat-Treated Medium Carbon Alloy Steel |

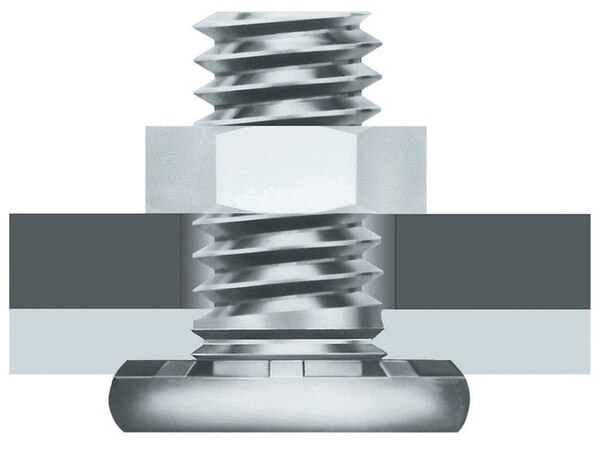

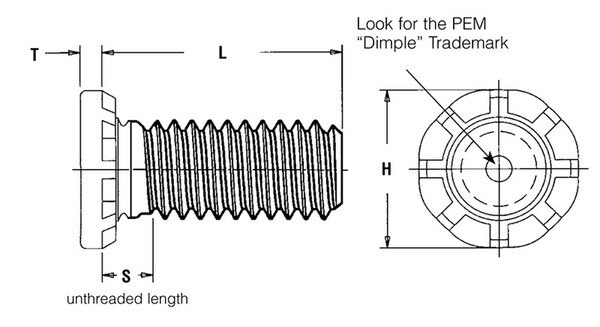

| H | 12.10 mm ±0.25 |
| S | 2.7 mm Max. |
| T | 2.29 mm Max. |
| Hole Size in Sheet | 6 mm + 0.13 |
| Min. Dist. Hole C/L to Edge | 18.00 mm |
