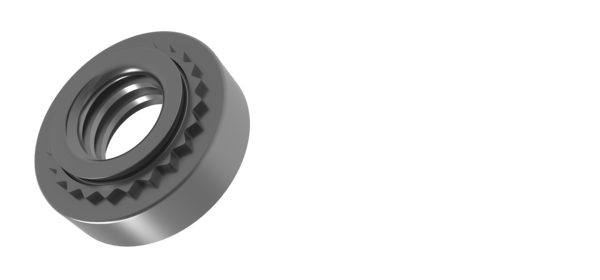

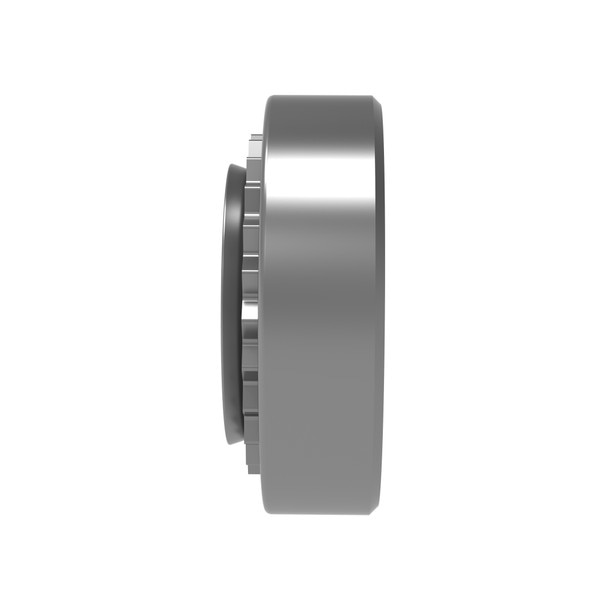

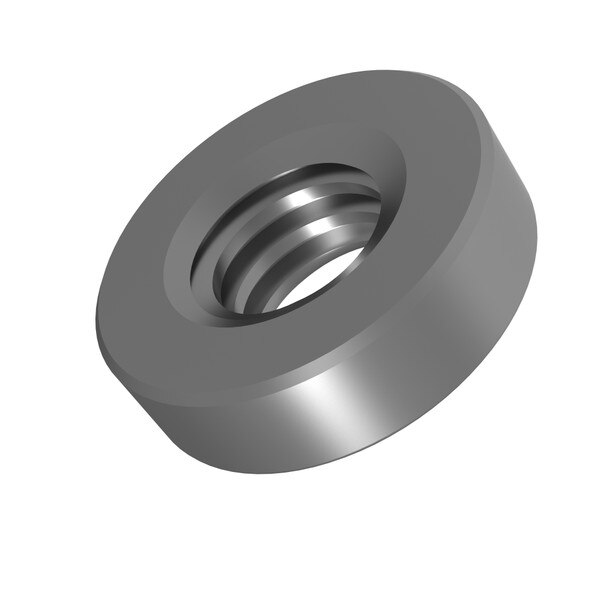

CLSS-032-2 PEM Self-Clinching Nut

SKU: 16128 | MPN: CLSS-032-2
/ Eaches
Subtotal:$0.24
Quantity Available *
QuantityLocation
49,810Bolingbrook
250Ellisville
18,298Morgan Hill
144Oakwood Village
17,019Roswell
312Scottsdale
16,382Shakopee
WARNING: Cancer and Reproductive Harm --
P65Warnings.ca.gov
Discount by: unit
QuantityPrice
1 - 99
100 - 249
250 - 499
500 - 999
1,000 - 4,999
5,000 - 9,999
10,000 - 24,999
25,000 - 49,999
50,000 - 99,999
100,000 - 249,999
250,000 +
*Additional inventory may be available. Please contact your sales location.

Details

Specification
ManufacturerPenn Engineering
Manufacturer's Part NumberCLSS-032-2
DescriptionCLSS-032-2 Standard Profile Nut
Product TypeCLSS
Thread Size#10-32
Material Specification300 Series Stainless Steel
Finish SpecificationPassivated and/or tested per ASTM A380
Shank Code2
A Shank Max..054 in
Min. Sheet Thickness.056 in
For Use In Sheet HardnessHRB 70/HB 125 or Less
Thread SpecificationInternal, ASME B1.1, 2B
Material FinishPassivated and/or tested per ASTM A380

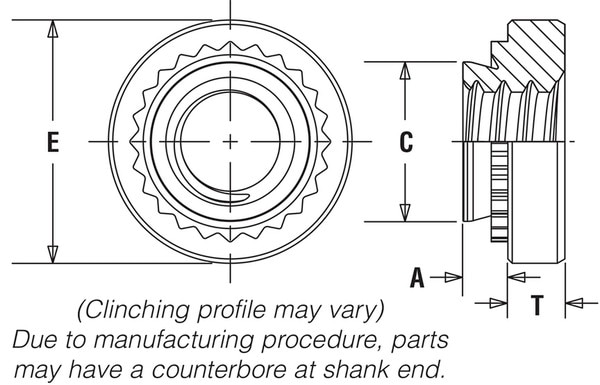

C0.249 in Max.
E.340 in ± .010
T0.090 in ± .010

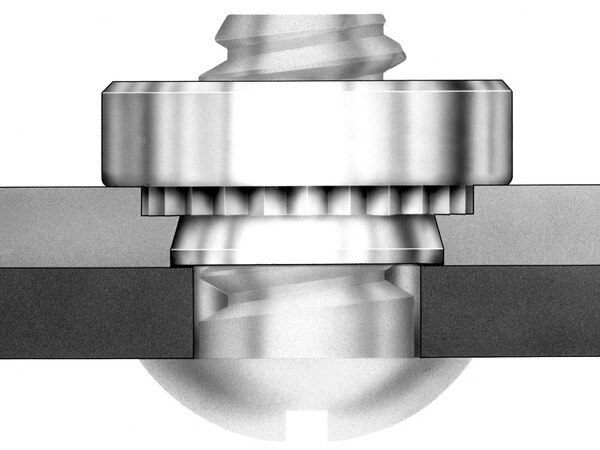

Hole Size in Sheet.250 in + .003 - .000
