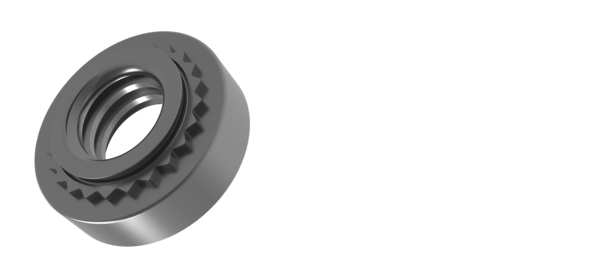

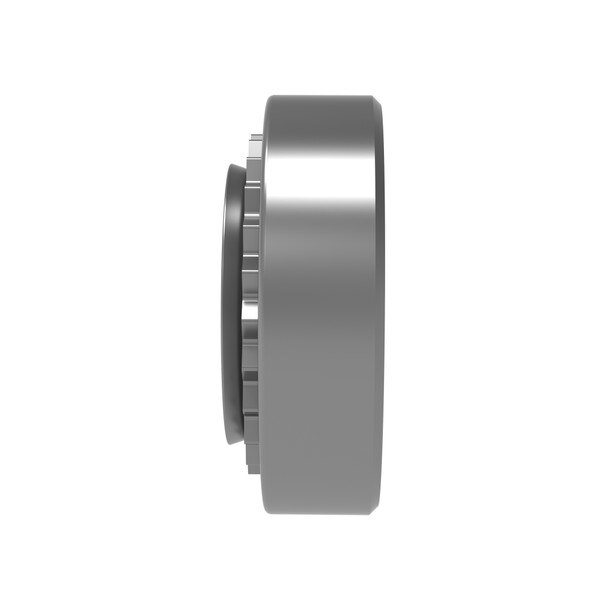

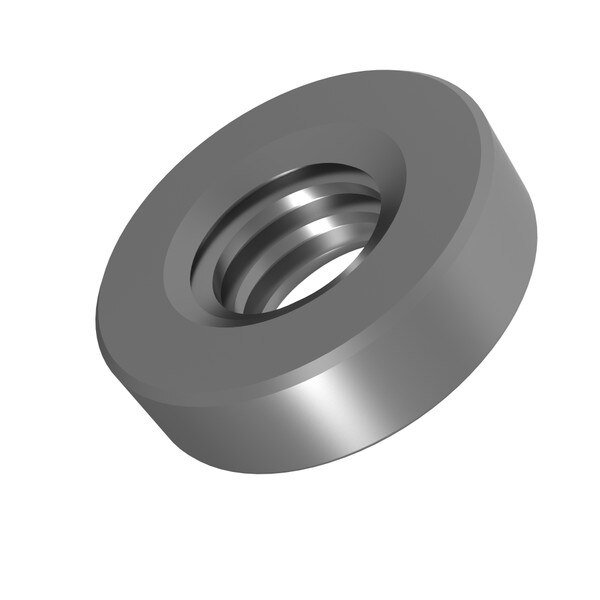

CLS-0518-2 PEM Self-Clinching Nut

SKU: 16184 | MPN: CLS-0518-2
/ Eaches
Subtotal:$0.86
Quantity Available *
QuantityLocation
404Anaheim
633Ellisville
2,954Morgan Hill
582Oakwood Village
1,170Roswell
WARNING: Cancer and Reproductive Harm --
P65Warnings.ca.gov
Discount by: unit
QuantityPrice
1 - 99
100 - 249
250 - 499
500 - 999
1,000 - 4,999
5,000 - 9,999
10,000 - 24,999
25,000 - 49,999
50,000 - 99,999
100,000 - 249,999
250,000 +
*Additional inventory may be available. Please contact your sales location.

Details

Specification
ManufacturerPenn Engineering
Manufacturer's Part NumberCLS-0518-2
DescriptionCLS-0518-2 Standard Profile Nut
Product TypeCLS
Thread Size5/16-18
Material Specification300 Series Stainless Steel
Finish SpecificationPassivated and/or tested per ASTM A380
Shank Code2

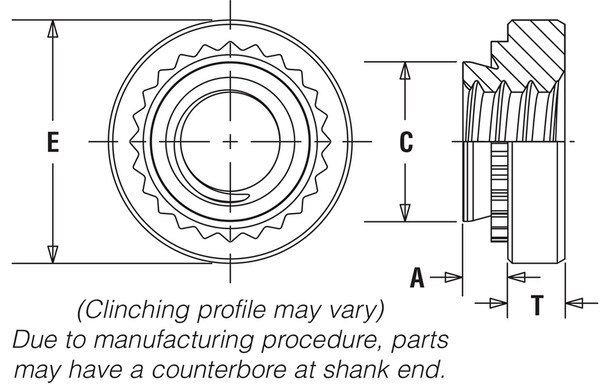

A Shank Max..087 in

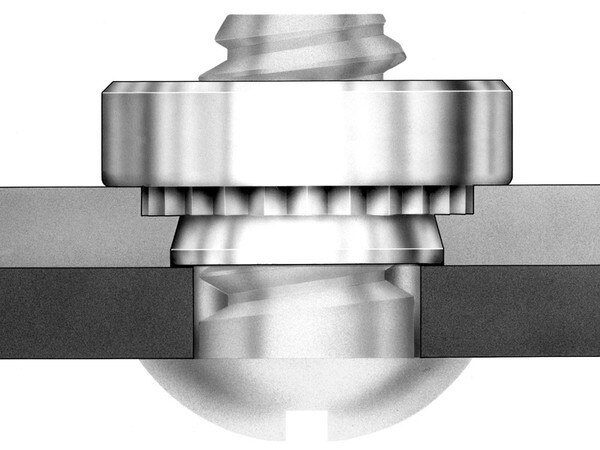

Min. Sheet Thickness.090 in
For Use In Sheet HardnessHRB 70/HB 125 or Less
Thread SpecificationInternal, ASME B1.1, 2B
Material FinishPassivated and/or tested per ASTM A380
C0.412 in Max.
E.500 in ± .010
T0.230 in ± .010
Hole Size in Sheet.413 in + .003 - .000
